Quick Details
Light Source: LED
Item Type: Street Lights
LED Light Source: Bridgelux
Input Voltage(V): AC85-265V
Lamp Power(W): 150
Lamp Luminous Flux(lm): 15000
Lamp Luminous Efficiency(lm/w): 100
CRI (Ra>): 80
Color Temperature(CCT): 3000k-6500K
Working Temperature(℃): -20 - 50
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: CE, EMC, LVD
Warranty(Year): 3
Place of Origin: Guangdong, China (Mainland)
Brand Name: WY
Model Number: WY2902-150W(B)
Product name: COB led street light
Product size: 800x300x120mm
Material: Aluminum Alloy
LED Driver: MeanWell/other
Power Factor: 0.95
Beam angle: 120 Degree
Warranty: 2-3years
Net Weight: 7kg
Product series: 50w/100w/150w
Application: Highways, Streets, Park, School ect.
Packaging & Delivery
| Packaging Details: | COB led street light N.W:8.7 kgs/ piece G.W:10kgs/piece |
|---|---|
| Delivery Detail: | 5-14 working days, base on the quantity |
Super brightness 6500k cool white 150w COB led street light retrofit
Product Description
Description of Led Street Light
1.Compatible with LED integration COB module, application module light source design, convenient maintenance and replacement.Uniform lightness,no spot of led street light.
2.MEANWELL efficient driver,stable performance,low power consumption of led street light.
3.Drawing aluminum housing with heat cooling system.
4.Top waterproof grade:IP65.
5.Street lighting's lifespan 50000hrs.
6.COB led street light has high quality with CE ROHS Standard.
Product Series of Led Street Light
|
Part No. (B series) |
Size(mm) |
LEDs |
Driver |
InputVoltage |
PF |
Lumens |
CCT |
IP |
WY2902-50w |
500x210x50 |
Bridgelux |
Meanwell |
AC85-265V |
0.95 |
5000lm |
3000-6500K |
65 |
WY2902-100w |
720x270x90 |
Bridgelux |
Meanwell |
AC85-265V |
0.95 |
10000lm |
3000-6500K |
65 |
WY2902-150w |
880x350x95 |
Bridgelux |
Meanwell |
AC85-265V |
0.95 |
15000lm |
3000-6500K |
65 |

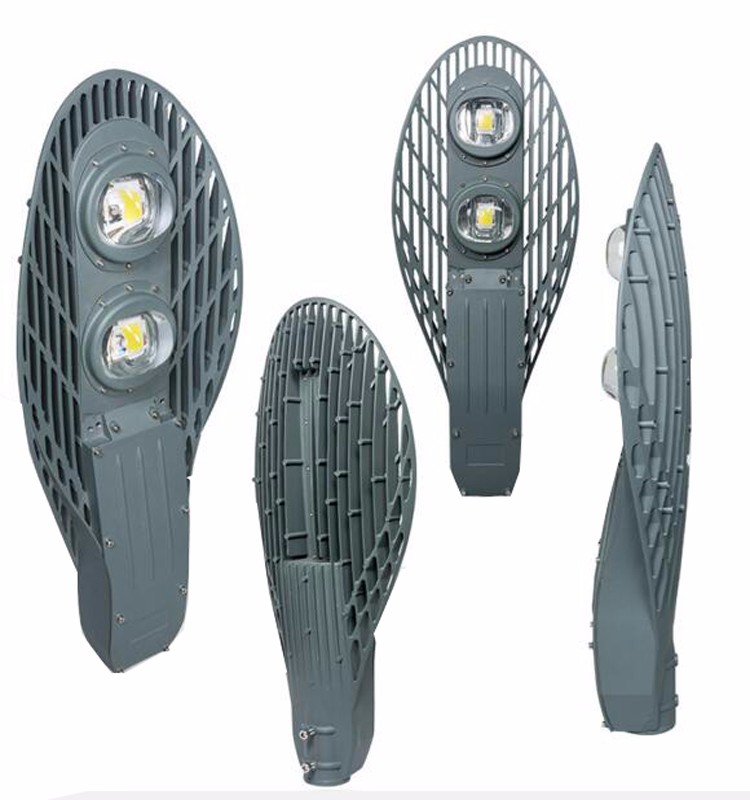

Details of Led Street Light
Spectrum Test Report of Led Street Light
Certificate of Led Street Light

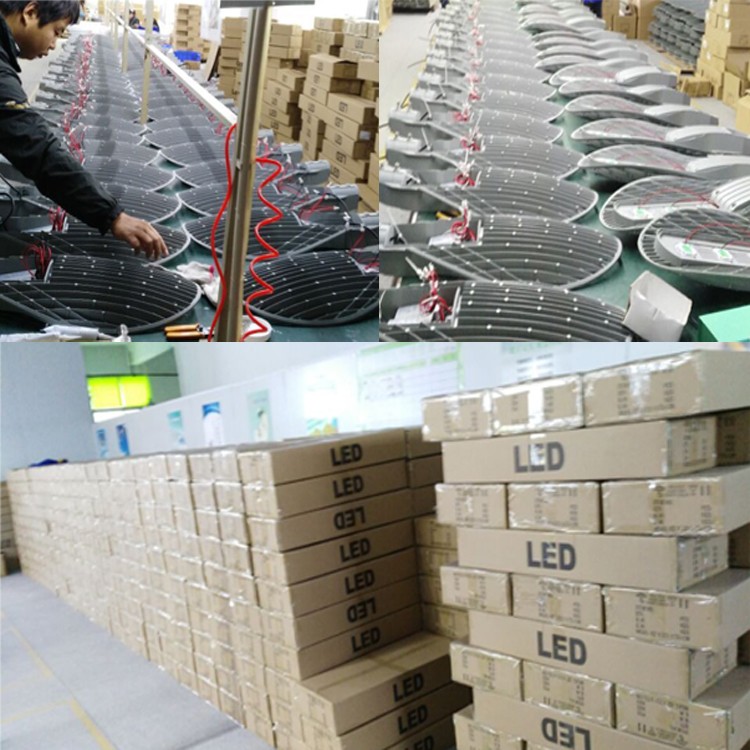

Production Line of Led Street Light
Application of Led Street Light
